Product Configuration

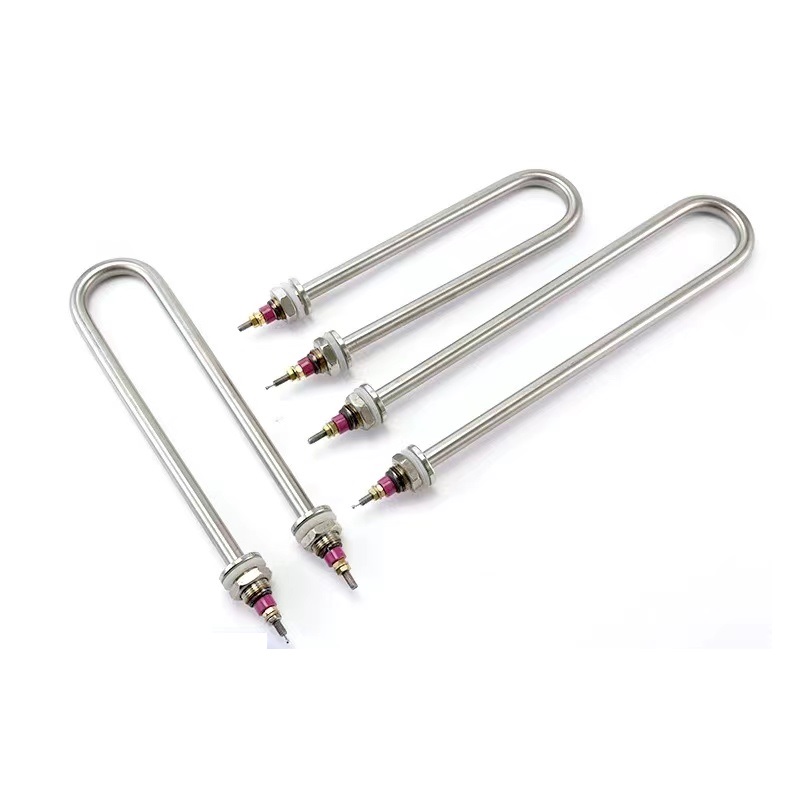

The stainless steel U shaped tubular heating element is an electric heater consisting of a heating element encapsulated in a metal or ceramic tube. The U shaped tube heatig element is designed to generate heat by converting electrical energy into thermal energy and is commonly used in various heating applications in industrial and domestic environments. Stainless steel tubular heaters are versatile and can be adapted to different heating requirements due to their flexible design and construction.
The structure of the U shaped tubular heating element is a rubber ring, a compression nut, a thermal insulation material and a nut. SUS tubular heater elements can be designed with a wide range of electrical ratings, diameters, lengths, terminations and sheathing materials. The U shaped tubular water heating elements are usually made of stainless steel, copper, etc. The choice of material can be determined from the maximum temperature of the sheath. Tubular heaters can be bent into various shapes required by customers through the process of tube shrinkage, annealing, bending and so on. The shape can be U-shaped, double-U-shaped or 3U-shaped, and can also be customized according to needs, which can increase the heating power in a limited length or width and improve the use effect.
Product Paramenters
| Porduct Name | 220V/380V Stainless Steel U Shaped Heating Tube Water Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Immersion Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
The stainless steel U shaped tube heating element material we have stainless steel 201 and stainless steel 304.The Electric Tubular Heater Heating Element is used for the commercial kitchenware,such as rice steamer,heat steamer,hot showcase,etc.The U shape heating tube size can be customized as client’s requirements.Tube diameter can be choosed 6.5mm,8.0mm,10.7mm,etc. |
|
Product Features
*** Increase heat transfer surface area
*** Max Sheath Temperature 870°C
*** Safe to operate,Durable,Easy to maintain
*** Secondary insulated bushings available
*** High temperature resistance and wide application range. Corrosion resistance
Product Applications
1. Liquid heating
*** Boiler/hot water system: The U shaped tubular heating element used in industrial boilers, electric water heaters, steam generators, etc.
*** Chemical reactor: heating oil, acid, alkali and other media (corrosion resistant materials, such as titanium, stainless steel 316L).
*** Electroplating bath/electrolytic bath: constant temperature control of electroplating bath temperature.
2. Air/gas heating
*** Oven/drying equipment: hot air circulation system for food, chemical, electronics and other industries.
*** Heating, Ventilation and Air Conditioning (HVAC) : Auxiliary heating air, improve heating efficiency in winter
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
