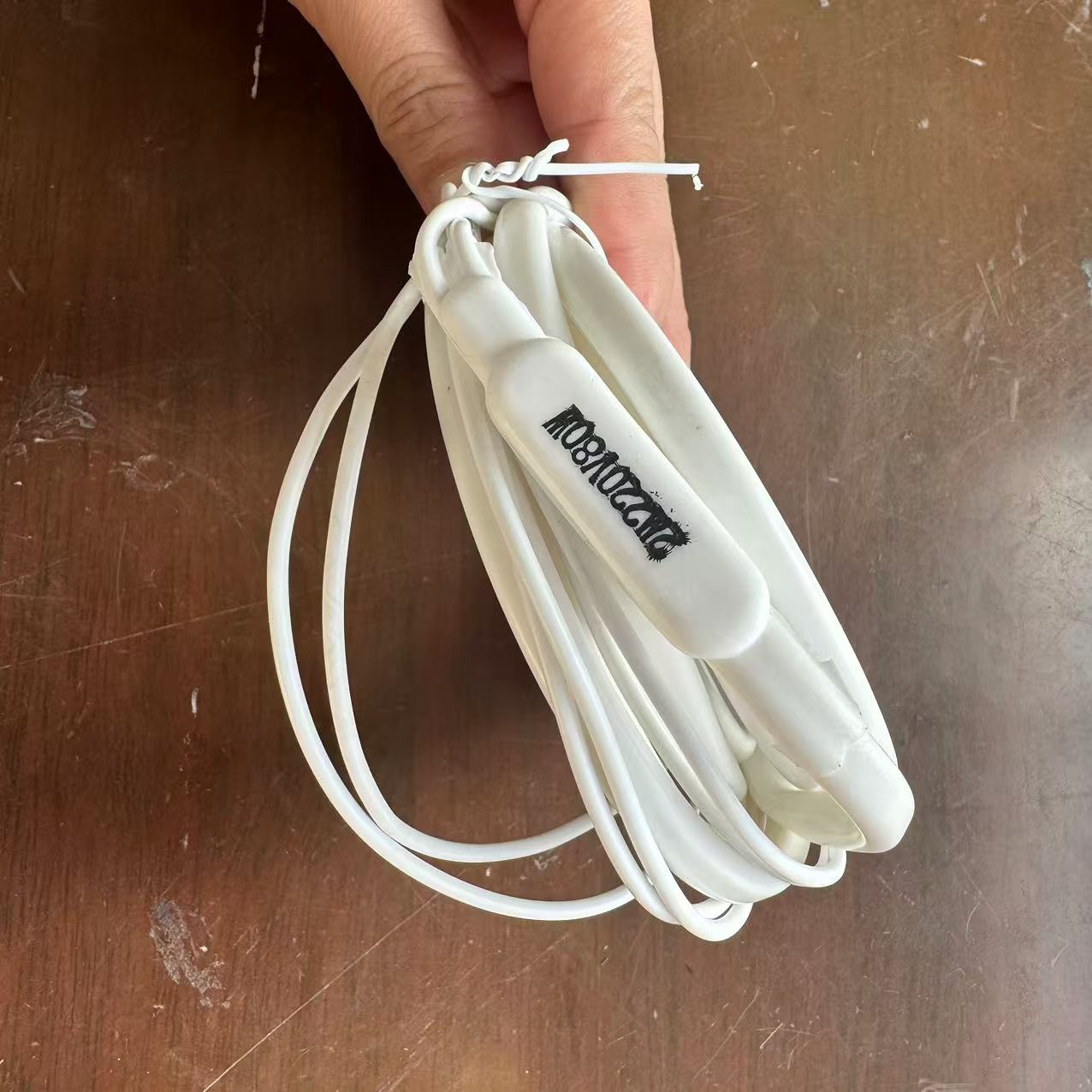

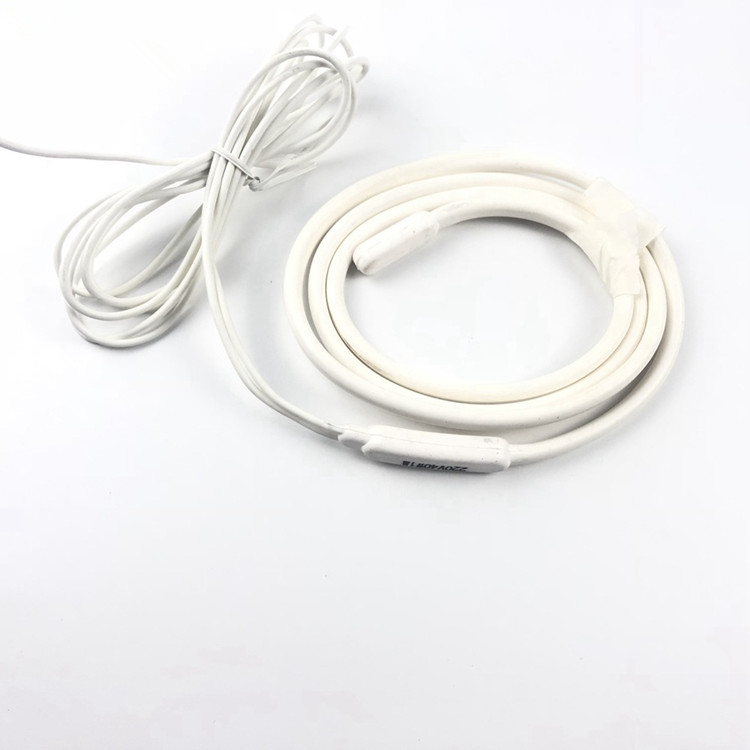

Product Configuration
Drain line heater for cold room is a specially designed electric heating device, which is widely used in air conditioning, cold storage, refrigerator and other refrigeration equipment, and the drain pipeline heater main function is to prevent the drainage pipe of these equipment from freezing in low temperature environment. This defrost drain heater ensures that the condensate can be successfully discharged through continuous or intermittent heating, thus effectively avoiding a series of problems caused by ice jams, such as equipment failure or water leakage.
In practical application, the role of defrost drain line heater in drainage pipe is particularly important. Especially in cold areas or in the case of low winter temperatures, condensate generated by refrigeration equipment may freeze in drainage pipes, forming ice plugs. If this happens, the condensate can not be discharged normally, but also may cause damage to the equipment, and even affect the efficiency of the entire system. For example, in a cold storage environment, if a drainage line is blocked by ice, condensate can flow back inside the device, damaging critical components or causing an electrical short circuit. In household refrigerators, ice blockage may lead to water leakage problems, affecting the user's normal use experience.
In order to deal with these problems, the drainage pipe defrost drain heater came into being. It is usually made of high-temperature and corrosion-resistant materials, which can adapt to a variety of complex use environments. In addition, the drain line heater can be set to continuous heating or intermittent heating mode according to the actual needs. Continuous heating is suitable for extreme low temperature environment, can provide a stable heat source to prevent icing; Intermittent heating is more energy efficient and suitable for use in scenarios with small temperature fluctuations. Through reasonable configuration of heating power and working mode, defrosting and heating pipes can ensure the normal operation of equipment and reduce energy consumption to the maximum extent.
Product Paramenters
| Porduct Name | China Cheap Drain Line Heater For Cold Room |
| Material | Silicone rubber |
| Size | 5*7mm |
| Heating length | 0.5M-20M |
| Lead wire length | 1000mm,or custom |
| Color | white,grey,red,blue,etc. |
| MOQ | 100pcs |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Drain pipe heater |
| Certification | CE |
| Package | one heater with one bag |
| Company | factory/supplier/manufacturer |
|
The power of drain line heater for cold room is 40W/M,we can also be made other powers,such as 20W/M,50W/M,etc.And the length of drain line heater have 0.5M,1M,2M,3M,4M,etc.The longest can be made 20M. The package of drain line heater is one heater with one transplant bag,customized bag quantity at list more than 500pcs for each length. Jingwei heater is also producing the constant power drain line heater,the heating cable length can be cut by yourself,the power can be customized 20W/M,30W/M,40W/M,50W/M,etc. |
|
1. Voltage: Common voltage is 12V, 24V, 110V, 220V and so on.
2. Power: Usually 5W/m to 50W/m, depending on the length and model,common power is 40W/M.
3. Temperature range: The operating temperature is generally -60°C to 50°C.
4. Length and width: the drain line heater can be customized to the length and diameter of the drain pipe.
5. Outer material: usually silicone, with good insulation and waterproof properties.
Product Features
1. Anti-freezing
Heat the water in the drainage pipe to prevent it from freezing and ensure smooth drainage.
2. Low temperature resistance
The walk in drain line heater is suitable for low temperature environment and can normally work in the range of -60°C to 50°C.
3. Waterproof and moisture-proof
The outer material has good waterproof performance and is suitable for humid environment.
4. Good flexibility
The drain heating belt is soft and flexible, and can be tightly fitted to the surface of the drain pipe.
5. Energy efficient
Low power, low energy consumption, high heating efficiency.
6. Easy installation
The drain line heater cable can be wrapped directly on the drain pipe or secured with tape.
Product Applications
*** Household air conditioning: self-limiting temperature drain line heater (15W/m, 220V, IP67).
*** Commercial cold storage: constant power drain heater + thermostat (25W/m, 220V).
*** Industrial equipment: silicone rubber heating belt (corrosion resistance, 30W/m, 380V).
For custom lengths or special voltage schemes, drain size and ambient temperature are available for further optimization.
Factory Picture
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
