Product Configuration
The main tubular heating element in a oven is in charge of producing heat for baking or cooking food. In order to provide consistent heat inside the oven, the dia 6.5mm oven grill heating element heater transforms electrical energy into thermal energy. Typically, the oven heating elements are mounted on the oven's top, bottom, or rear. Convection fans are another feature that certain ovens have to improve the hot air circulation.
In order to ensure long-term stable operation, the primary type of dia 6.5mm oven heating element for bake grill stoves uses 304 stainless steel protective tubes, which are resistant to corrosion and high temperatures (above 500°C). The oven bake heating elements' power range is between 300 and 2000W, and they must be matched to the oven's capacity (for example, 500-800W is recommended for small household ovens, and for commercial equipment, it should be ≥1500W).
Product Paramenters
| Porduct Name | China Cheap Grill Oven Heating Element Dia 6.5MM |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Oven Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Company | factory/supplier/manufacturer |
|

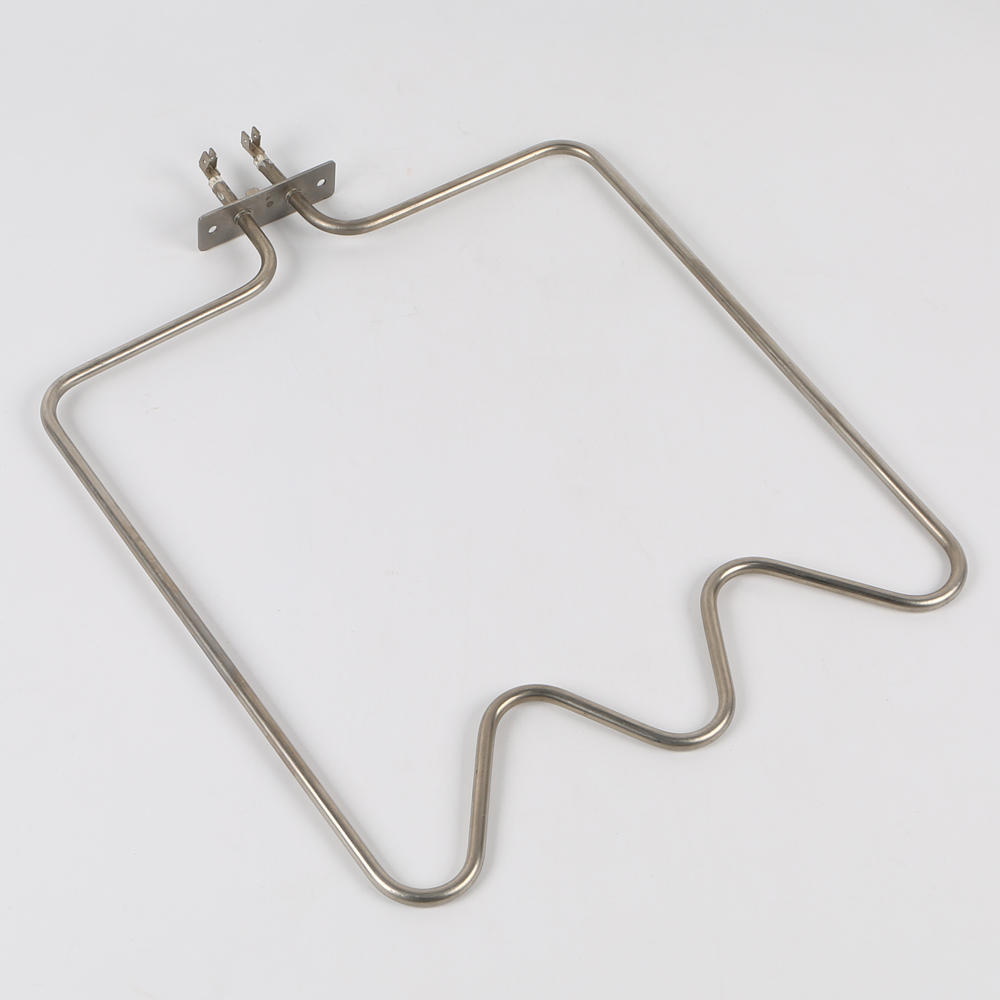

The dia 6.5mm oven grill heating element is used for the microwave,stove,electric grill.Shape of the oven heater can be customized as client’s drawings or samples.The tube diameter can be choosed 6.5mm,8.0mm or 10.7mm. JINGWEI HEATER is the professional oven heating tube factory/supplier/manufacturer,the voltage and power of oven heating element for grill/stove/microwave/bake can be customized as required.And the oven heating element tube can be annealed,the tube color will be dark green after annealing.We have many kinds of the terminal models,if you need add the terminal,you need send us the model number first. |
|
Type of Oven Heating Element
1. Bottom oven grill heating element
*** Located at the bottom of the oven, it is mainly used to heat the bottom of the food or provide even baking heat.
*** Often used in baking, baking and other modes.
2. Top oven grill heating element
*** Located at the top of the oven, mainly used for coloring or baking the surface of food.
*** Often used in Grill mode.
3. Back oven heating tube
*** the dia 6.5mm oven heating element is usually used in combination with a convection fan to enhance hot air circulation and make the internal temperature of the oven more uniform.
*** The oven heating element is commonly used in Convection mode (Convection).
4. Quartz heating tube
*** Used in some high-end ovens, heating speed is fast, strong durability
Product Features
✅ Rapid heating: the working temperature (such as 200℃) can be reached within 3 to 5 minutes.
✅ High temperature resistance: long-term working temperature 300~500℃, instantaneous temperature resistance up to 800℃.
✅ Corrosion resistance: stainless steel is resistant to water vapor and grease corrosion.
✅ High thermal efficiency: power conversion rate >95%, energy saving.
Products Appliance
1. Home baking : Stainless steel is preferred, the dia 6.5mm oven grill heating element suitable for 220V voltage, length less than 530mm (small oven).
2. Commercial high frequency use: the oven grill heating element dia 6.5mm select the optimized design model of dry burning resistance, power ≥1500W, support the auxiliary program of hot fluorine defrost .
JINGWEI Workshop
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

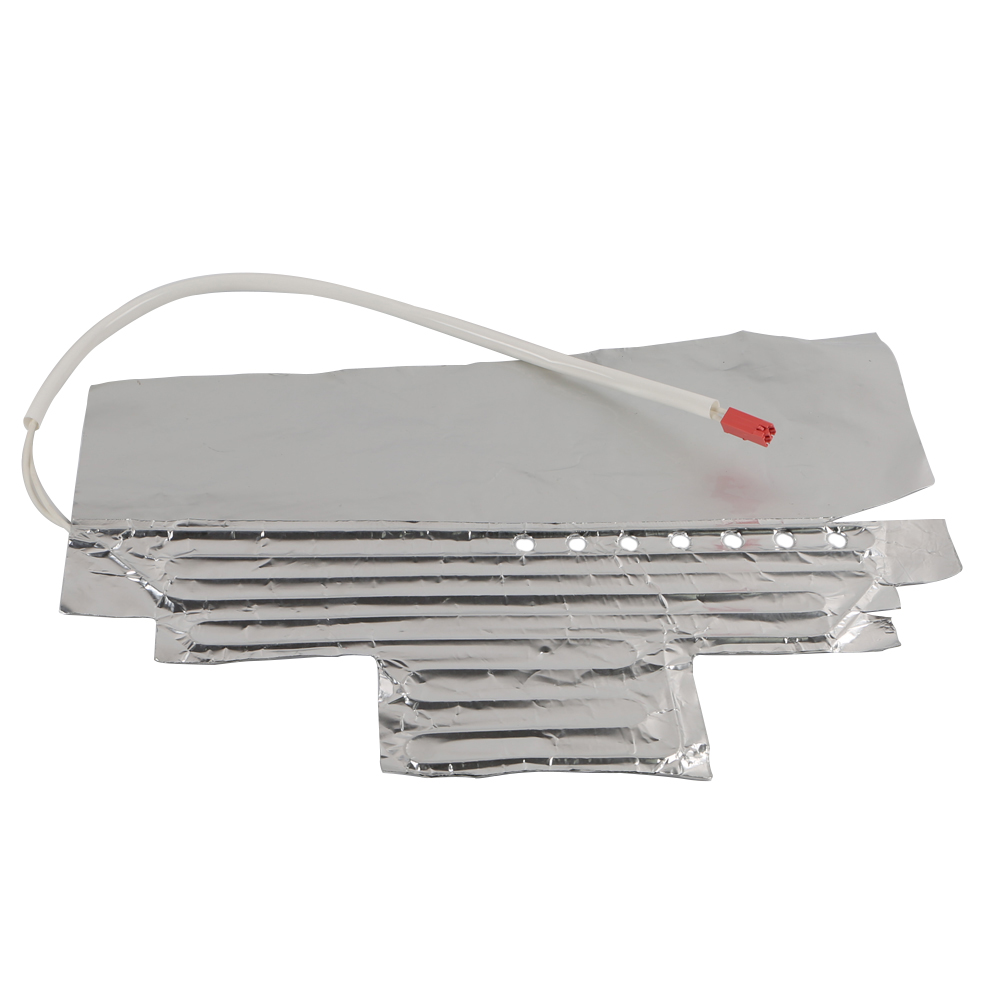

Aluminum Foil Heater
Defrost Heater
Fin Heating Element
Silicone Heating Pad
Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
