Product Paramenters
| Porduct Name | Defrost Part Cold Room Heating Elements |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost Heating Element |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
The cold room heating element is used for the air cooler defrosting,picture shape of defrost heating tube is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The stainless steel defrost heating tube for air cooler tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Product Configuration
Refrigerator Stainless steel defrost heater is the electrical heating element designed and developed for the defrosting by the electrical heating on the refrigerating equipments like various refrigeration houses, refrigeration, exhibitions and island cabinets. It can be conveniently inlayed in the fins of the air cooler and the condenser as well as the chassis of the water collector to do the defrosting work.The cold room heating element has the function of good defrosting and heating effect, stable electric property, high insulation resistance,corrosion resisting,anti-aging, high overload capacity, small leakage current, stability and reliability as well as the long use life.
Defrost Heaters are produced using Incoloy840, 800, stainless steel 304, 321, 310S, aluminum sheath materials. and also there is huge variety of selection of termination styles available. Defrost heater are custom designed in a various Shapes and sizes based on customer’s requirements.
Defrost Heater for Air-cooler Model
Product Advantages
1. Good defrosting and heating effect
2. Corrosion resisting and anti-aging,
3. Long life Working time,
4. Fast heat exchange rate
5. Stability and reliability
JINGWEI Wokshop
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Immersion Heater
Electric Heating Tube
Defrost Wire Heater

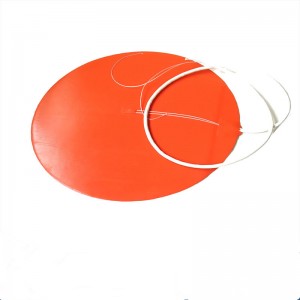

Silicone Heating Pad
Pipe Heat Belt
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
