China Freezer Defrost Tube Heater For Fridge

Short Description:

The defrost heater tube for fridge material have stainless steel 304 or stainless steel 316,tube diameter of fridge defrost heater can be made 6.5mm and 8.0mm,the length have 10-25inch.The tube with lead wire part can be seal by rubber or shrinkable tube.The specification of defrost heater for fridge can be customized as required.


Product Detail

Product Tags

Product Configuration

The defrost tube heater for fridge is an important component in the refrigeration system. In order to maintain the refrigerator's refrigeration efficiency, the defrost heater tube's primary function is to melt the frost that has accumulated on the evaporator during the automatic defrosting cycle. The refrigerator's defrost heater tube for fridge, which is 20 inch or longer and compatible with the freezer evaporator's construction, is composed of 304 stainless steel, which has a high resistance to corrosion. The electricity is generated in accordance with specifications, and the voltage can be adjusted between 110 and 230V.

Typically, electric heating wires and insulating materials make up refrigerator defrost heater tubes for fridge. They produce heat when they are powered on. The refrigerator's defrost heater for fridge begins to melt the frost layer on the evaporator as soon as the defrost timer or control board delivers a signal. The drain pipe is used to remove the melted water from the refrigerator during the defrosting operation.

Product Paramenters

Porduct Name China Freezer Defrost Tube Heater For Fridge
Humidity State Insulation Resistance ≥200MΩ
After Humid Heat Test Insulation Resistance ≥30MΩ
Humidity State Leakage Current ≤0.1mA
Surface Load ≤3.5W/cm2
Tube diameter 6.5mm,8.0mm,10.7mm,etc.
Shape straight,U shape,W shape,etc.
Resistant voltage in water 2,000V/min (normal water temperature)
Insulated resistance in water 750MOhm
Use Defrost Heater Element
Tube length 300-7500mm
Lead wire length 700-1000mm (custom)
Approvals CE/ CQC
Company Manufacturer/supplier/factory

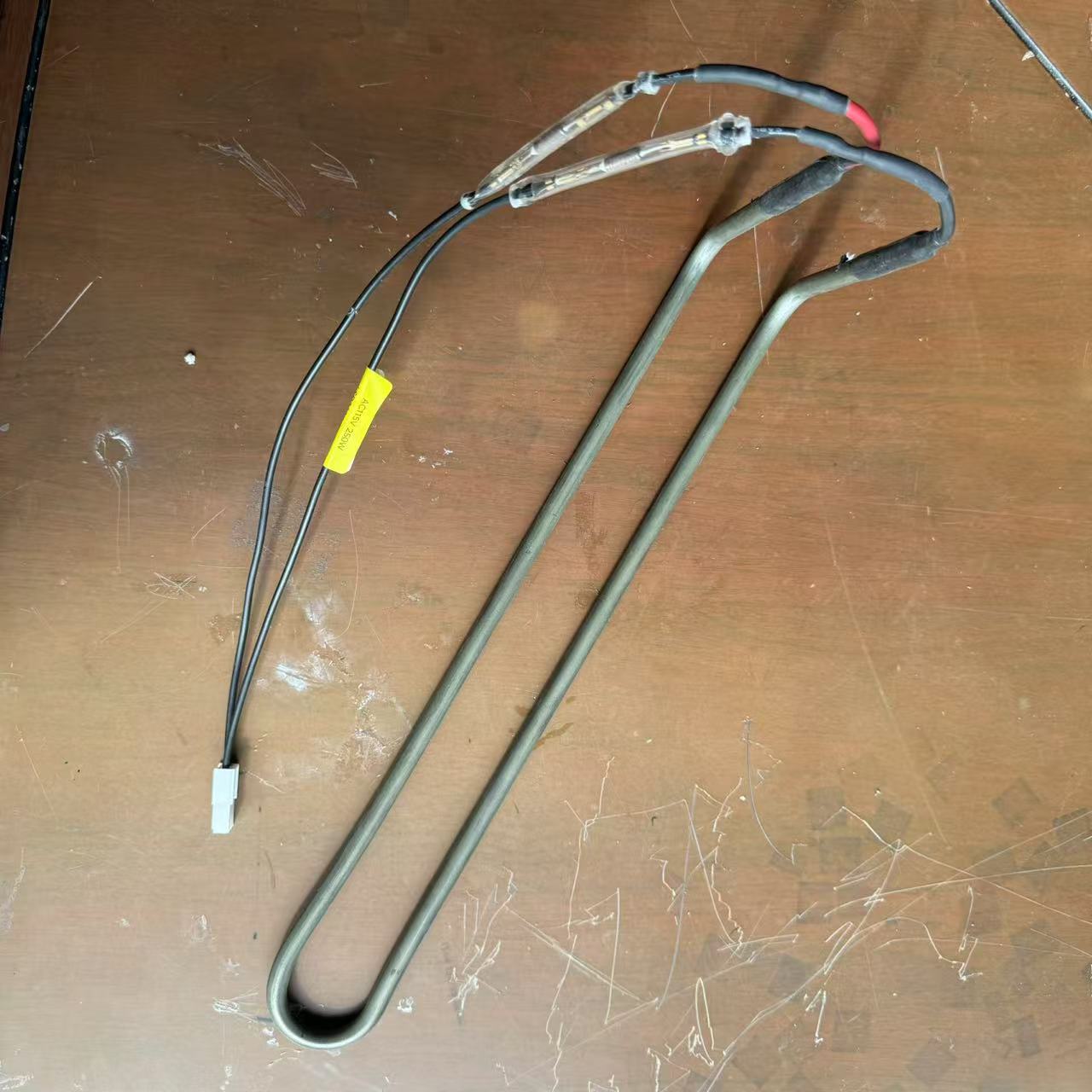

The 6.5mm defrost tube heater for fridge is used for the air cooler defrosting,picture shape of defrost heater is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required.

The stainless steel defrost heater tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter.

Defrost Heater for Air-cooler Model

China evaporator defrost-heater for cold room supplier/factory/manufacturer
China evaporator defrost-heater for cold room supplier/factory/manufacturer
China resistencia defrost heater supplier/factory/manufacturer

Product Features

Effective management of temperature and frost

*** To guarantee refrigeration efficiency, the defrost tube heater for fridge rapidly melts the coating of ice on the chiller's evaporator or condenser surface. The refrigerator defrost heater works well in temperatures between -30°C and 50°C.

*** Accurately match the defrosting cycle, support segmented heating (e.g., 1000W–1200W power range), and heat up to 400°C per hour.

Durability and safety

*** Stainless steel shell that is resistant to corrosion, mechanical impact, and has a life of up to 4500 hours;

*** Insulation that is resistant to leaks and has a resistance of at least 60MΩ, which helps to prevent electrical hazards in humid environments.

Flexible adaptation ‌

*** The producer of defrost tube heaters for fridge allows for non-standard customization (e.g., pipe diameter 8.0mm, length 1.3m), which is appropriate for complex structures like evaporator fins and chiller chassis;

*** Equipment for cold chain transportation, commercial cold storage, and residential freezers are all compatible with 220V and 380V electricity.

Product Application

1‌. Direct cooling/air-cooled refrigerator ‌: the defrost heater for fridge used under the evaporator or in the variable temperature return air duct to melt frost on the surface of the evaporator and prevent the return air duct from freezing (such as the air-cooled refrigerator to achieve rapid frost through the aluminum tube heater).

2. Cold storage and refrigerated display cabinets ‌:

*** Solve the problem of evaporator frosting in low temperature environment to ensure the refrigeration efficiency of cold storage.

*** Commercial reefer adopts variable power design to adapt to different environmental humidity requirements ‌.

3. Ship and cold chain transportation : refrigerated container defrosting system adopts waterproof heating pipe to adapt to high humidity environment ‌.

47164d60-ffc5-41cc-be94-a78bc7e68fea

Production Process

1 (2)

Service

fazhan

Develop

received the products specs,drawing,and picture

xiaoshoubaojiashenhe

Quotes

the manager feedback the inquiry in 1-2hours and send quotation

yanfaguanli-yangpinjianyan

Samples

Free samples will be sent for check products quality before bluk production

shejishengchan

Production

confirm products specification again,then arrange the production

dingdan

Order

Place order once you confirmed samples

ceshi

Testing

Our QC team will be checked the products quality before delivery

baozhuangyinshua

Packing

packing products as required

zhuangzaiguanli

Loading

Loading ready productsto client’s container

receiving

Receiving

Received you order

Why Choose Us

•   25 years exporting & 20 years manufacturing experience
   Factory covers an area of about 8000m²
   In 2021,all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
•   the average daily output is about 15000pcs
   Different Cooperative customer
•   Customization depend on your requirement

Certificate

1
2
3
4

Related Products

Aluminum Foil Heater

Immersion Heater

Oven Heating Element

Defrost Wire Heater

Drain Line Heater

Crankcase Heater

Factory Picture

aluminum foil heater
aluminum foil heater
drain pipe heater
drain pipe heater
06592bf9-0c7c-419c-9c40-c0245230f217
a5982c3e-03cc-470e-b599-4efd6f3e321f
4e2c6801-b822-4b38-b8a1-45989bbef4ae
79c6439a-174a-4dff-bafc-3f1bb096e2bd
520ce1f3-a31f-4ab7-af7a-67f3d400cf2d
2961ea4b-3aee-4ccb-bd17-42f49cb0d93c
e38ea320-70b5-47d0-91f3-71674d9980b2

Before the inquiry,pls send us below specs:

1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
