Product Configuration

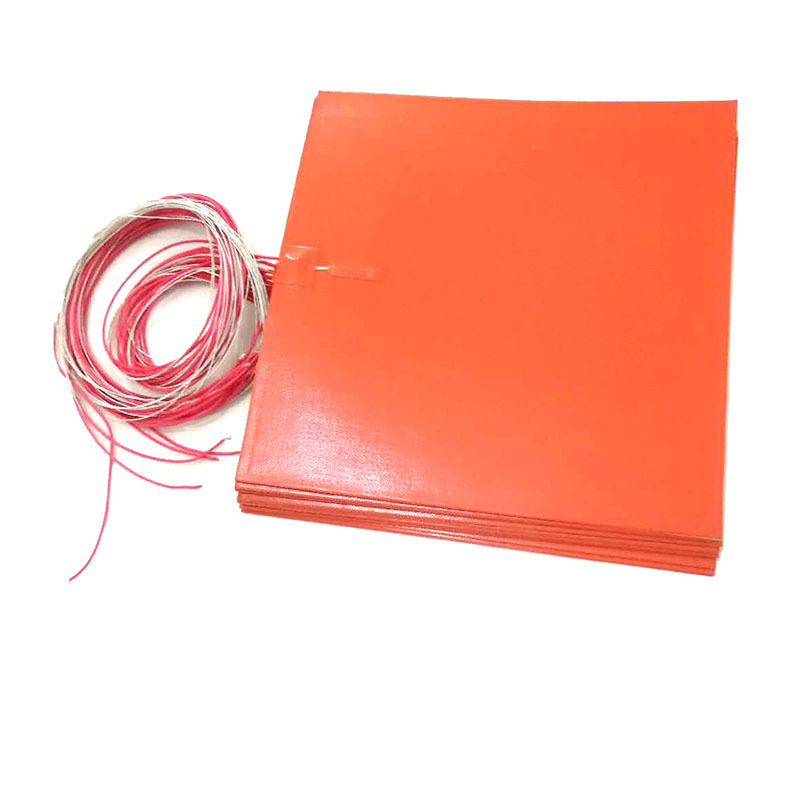

Silicone rubber heater pad is a soft and flexible thin sheet electric heating device, which is made by placing the metal heating element in the shape of a pole or a wire in the glass fiber cloth coated with high temperature resistant silicone rubber and pressing it at high temperature. The silicone rubber heater body is thin, usually 1.5MM thickness. Silicone rubber heater mat is light in weight, generally 1.3-1.9 kg per square meter. It has the characteristics of large heating surface, uniform heating, weather resistance, corrosion resistance, environmental protection, flame retardant, easy installation, long service life and high insulation strength. It is useful in many electric heating devices.
The silicone rubber heater pad has good softness and can be in complete close contact with the heated object. With flexibility, it is easier to get close to the heating body, and the shape can change with the requirements of the design heating. The silicone rubber heater is composed of nickel alloy resistance lines after being arranged, and the surface heater can be made into various shapes as required. The back of the heating sheet is added with backing glue, which can make the silicone heating sheet firmly stick to the surface of the object to be added. Easy to install. The silicone rubber heating pad can be customized according to the user's needs of voltage, power, size, product shape production.
Product Paramenters
| Porduct Name | Silicone Rubber Heater Supplier/Manufacturer |
| Material | Silicone rubber |
| Thickness | 1.5mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Company | factory/supplier/manufacturer |
| Approvals | CE |
| The China Silicone Rubber Heater contains silicone rubber heating pad,crankcase heater,drain pipe heater,silicone heating belt,home brew heater,silicone heating wire.The specification of silicone rubber heating pad can be customized as client's requirements. | |
Product Features
1. High temperature resistance
The silicone rubber material can withstand high temperatures, usually in the operating temperature range of -60°C to 250°C, and special models can withstand higher temperatures.
2. Good flexibility
The silicone rubber heater is soft and flexible, and can be tightly fitted to surfaces of various shapes.
3. Waterproof and moisture-proof
Silicone has good waterproof performance, suitable for wet or harsh environments.
4. Corrosion resistance
It has good corrosion resistance to most chemical substances.
5. Excellent insulation performance
Silicone insulation layer can effectively prevent leakage and ensure safe use.
6. Even heating
Uniform heating, high thermal efficiency.
7. Lightweight design
The thickness is usually between 1.5mm and 3mm, suitable for limited space occasions.
Product Application
Because the silicon rubber heater mat is basically not limited by size, it can be as large as a few square meters, as small as a few square centimeters, and can be designed into various shapes of heating bodies with conditional voltage use according to needs, so that it is more and more used in various fields.
1, heat transfer machine heating plate
2, baking cup (plate) machine heating sheet
3. Oil drum heater
4, heat sealing machine heating sheet
5, medical equipment heating and insulation
6, chemical pipeline heating
