Product Paramenters
| Porduct Name | China Oven Grill Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Oven Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|

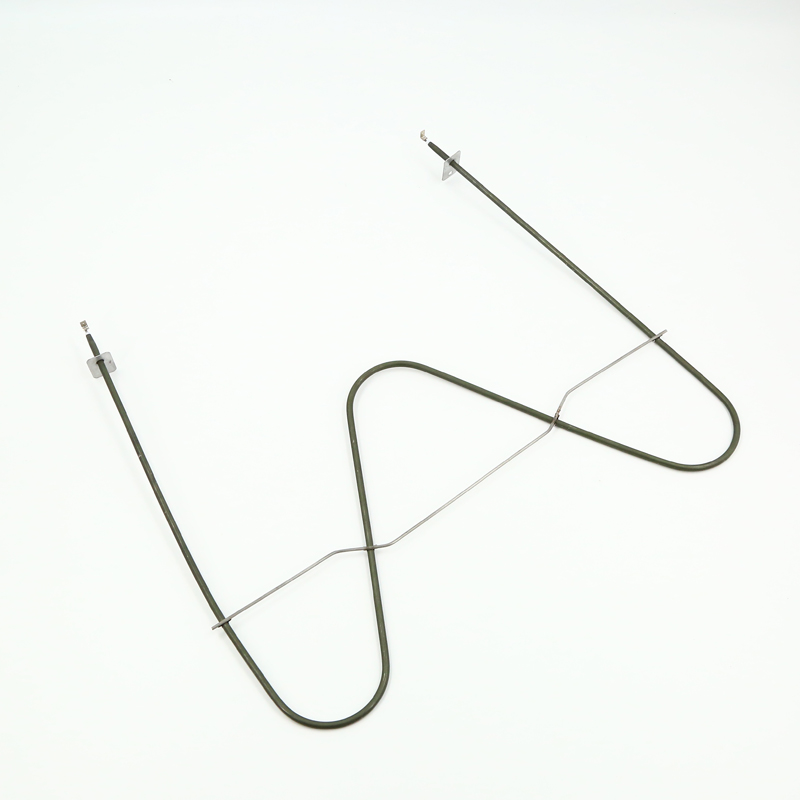

The oven heating element is used for the microwave,stove,electric grill.Shape of the oven heater can be customized as client’s drawings or samples.The tube diameter can be choosed 6.5mm,8.0mm or 10.7mm. JINGWEI HEATER is the professional heating tube factory,the voltage and power of oven heating element can be customized as required.And the oven heating element tube can be annealed,the tube color will be dark green after annealing.We have many kinds of the terminal models,if you need add the terminal,you need send us the model number first. |
|
Product Configuration
The grill oven heating element is made of a metal tube as the shell. Spiral electric heating alloy wires (nickel-chromium, iron-chromium alloy) are evenly distributed along the central axis of the tube. The gaps are filled and compacted with magnesia sand with good insulation and thermal conductivity. Both ends of the nozzle are made of silica gel or Ceramic seal. The Oven Grill Heating Element usually used in household ovens, it is made of high-temperature resistant materials, making it dry-boiled. In order to better fit the oven, the shape and size of the oven grill heating tube can be customized, and the voltage and power can also be customized according to requirements.
Product Features
1. Pressure resistance, corrosion resistance, high temperature resistance
2. Adopt solid stainless steel welding technology, excellent material and long service life.
3. High-density centralized type, compact structure and good stability.
Factory inspection items:
1. Overall dimensions.
2. Insulation breakdown test (2000V 1amp).
3. Insulation resistance 1000V, 11GΩ (ultra-high insulation requirements to prevent tube burst during high temperature work)
4. Resistance value +5% - -10%
5. Thread
6. Other technical requirements
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Oven Heating Element
Fin Heating Element
Silicone Heating Pad
Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
