Product Configuration
The finned heating tube is an efficient electric heating element, usually composed of a metal tube (such as stainless steel, copper or titanium alloy), an electric heating wire (resistance wire), a modified MgO powder (insulating filler), and an external fin. The fin design increases the surface area of the heating tube, thereby improving the heat exchange efficiency, and is widely used in air heating, liquid heating, ovens, ovens, air conditioning systems and other fields.
When purchasing customization, pay attention to the following:
1. Power and voltage: Select the right power and voltage of tubular finned heating element (such as 220V, 380V, etc.) according to the heating requirements.
2. Size and shape: Select the appropriate length, diameter and fin spacing according to the installation space and heating target.
3. Material selection: stainless steel 304/316/310S
4. Working temperature: Select the temperature range according to the actual demand.
5. Control mode: It can be matched with temperature controller or PLC to achieve accurate temperature control
Product Paramenters
| Porduct Name | Tubular Heater Finned Air Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,etc |
| Shape | Straight,U shape,W shape,or customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Finned Heating Element |
| Terminal | Rubber head,flange |
| Length | Customized |
| Approvals | CE, CQC |
| The shape of air finned heating element we usually made by straight,U shape,W shape,we can also customized some special shapes as required.Most customer's is choosed the tube head by flange,if you used the finned heating elements on unit cooler or other defrsoting equipments,maybe you can choosed the head seal by silicone rubber,this seal way has the best waterproof. | |
Shape Choose
Straight

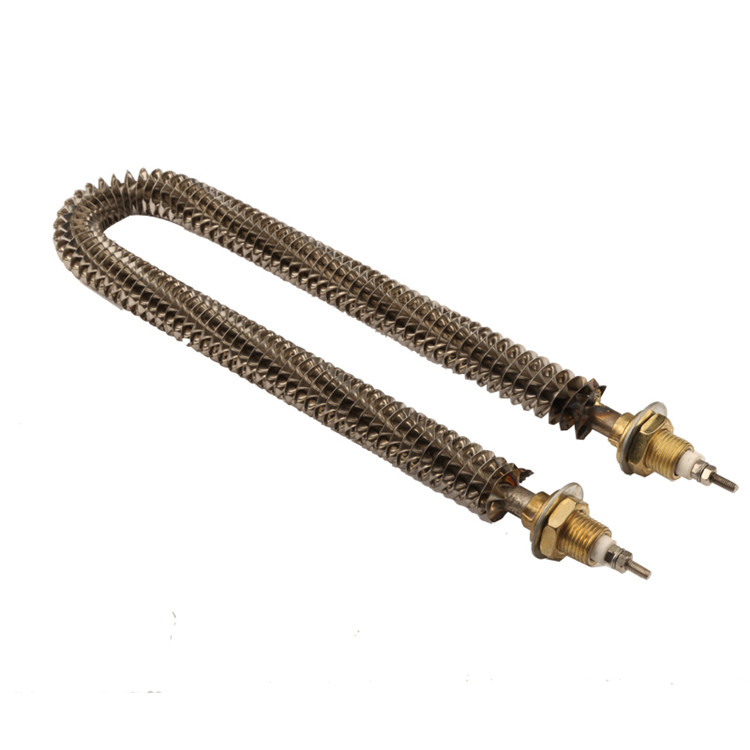

U shape
W shape
*** High heating efficiency, good energy saving effect.
*** Strong structure, long service life.
*** Adaptable, can be used in a variety of media (air, liquid, solid).
*** Finned heating element shapes and sizes can be customized according to requirements.
Product Features
Efficient heating
Fin design greatly increases the heat dissipation area and high heat exchange efficiency.
High temperature resistance
The tubular finned heating element can withstand high temperature working environment, suitable for a variety of industrial occasions.
Easy to install
Compact structure, customized shape and size according to demand.
Corrosion resistance
The finned aire heater element use the stainless steel or other corrosion-resistant materials, suitable for humid or corrosive environments.
Long service life
High quality materials and reasonable design ensure durable heating tubes.
Product Applications
Finned heating tube element is a kind of efficient and reliable heating element, which is widely used in industrial and household fields. Selecting the right finned heating tube and maintaining it regularly can significantly improve equipment performance and life. For more information, please refer to the specific product description or consult a professional technician.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater Element
Immersion Heater
Oven Heating Element
Aluminum Foil Heater
Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
