Product Paramenters
| Porduct Name | Cold Room Evaporator Defrost Heater |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost Heating Element |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|

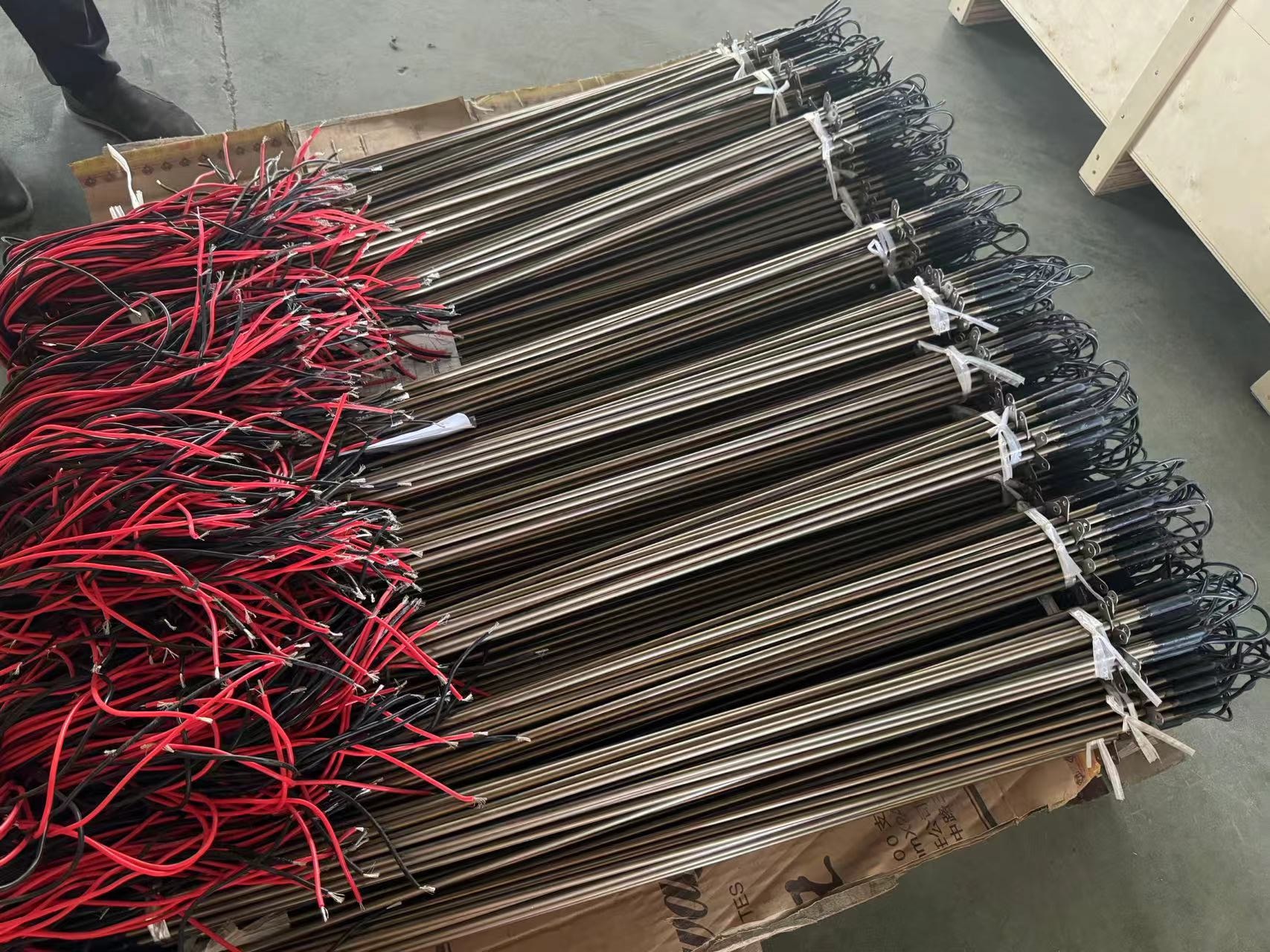

The Cold Room Evaporator Defrost Heater is used for the air cooler defrosting,picture shape of defrost heating tube is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The stainless steel defrost heating tube for air cooler tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Product Configuration
Cold Room Evaporator Defrost Heaters are specially designed to tackle the issue of poor refrigeration performance caused by difficult defrosting in various freezers and refrigerator cabinets.These defrost heaters are crucial for maintaining the efficiency and effectiveness of refrigeration systems by preventing frost buildup on cooling coils and other components.Made from durable stainless steel tubing, defrost heaters can be customized and bent into various shapes to fit specific applications, ensuring easy installation and optimal performance.
Defrost Heater for Air-cooler Model
Product Application
1. Freezers and Refrigerator Cabinets: Used to prevent frost buildup in various types of freezers and refrigerator cabinets.
2. Cooling Fans and Condensers: Installed within the sheets of cooling fans and condensers to ensure efficient defrosting.
3. Water Collection Trays: Used for electrically-controlled defrosting at the bottom of water collection trays, preventing water from freezing.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Immersion Heater
Oven Heating Element
Defrost Wire Heater
Drain Line Heater
Pipe Heat Belt
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
