The grill heating element resistance in an oven are one of the key components for achieving efficient baking and cooking. These oven grill heating elements are typically designed in a tubular shape, with heating wires inside and insulated by modified MgO powder to ensure safety and stability. The design of grill bake heating element, combined with forced convection technology, can significantly enhance heat transfer efficiency and make the temperature distribution inside the oven more uniform.
In China, manufacturers of grill heating elements resistance for ovens widely use 304 stainless steel and 310S stainless steel as the main materials. These two types of stainless steel are favored for their excellent resistance to steam corrosion. Especially for built-in steam ovens, choosing the right material is crucial.
304 stainless steel has good corrosion resistance and is economical, suitable for most household oven scenarios;
While 310S stainless steel shows stronger durability and corrosion resistance in high-temperature environments, making it more suitable for environments with long-term exposure to steam. Although 310S is more expensive, its service life can exceed five years, providing users with a longer-lasting reliable guarantee.
Product Paramenters
| Porduct Name | High Quality Oven Heater Parts Grill Heating Element Resistance |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Oven Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Company | factory/supplier/manufacturer |
|
The oven grill heating element resistance is used for the microwave,stove,electric grill.Shape of the oven heating element can be customized as client’s drawings or samples.The tube diameter can be choosed 6.5mm,8.0mm or 10.7mm. JINGWEI HEATER is the professional heating tube factory/supplier/manufacturer,the voltage and power of oven heating element for grill/stove/microwave can be customized as required.And the oven heating element tube can be annealed,the tube color will be dark green after annealing.We have many kinds of the terminal models,if you need add the terminal,you need send us the model number first. |
|
In addition to the selection of materials, the shape of the grill heating element resistance also directly affects the baking effect. Common shapes of grill heating element resistance include U-shaped, flat, and M-shaped. Each shape has its unique advantages and disadvantages:
Type of Oven Heating Element

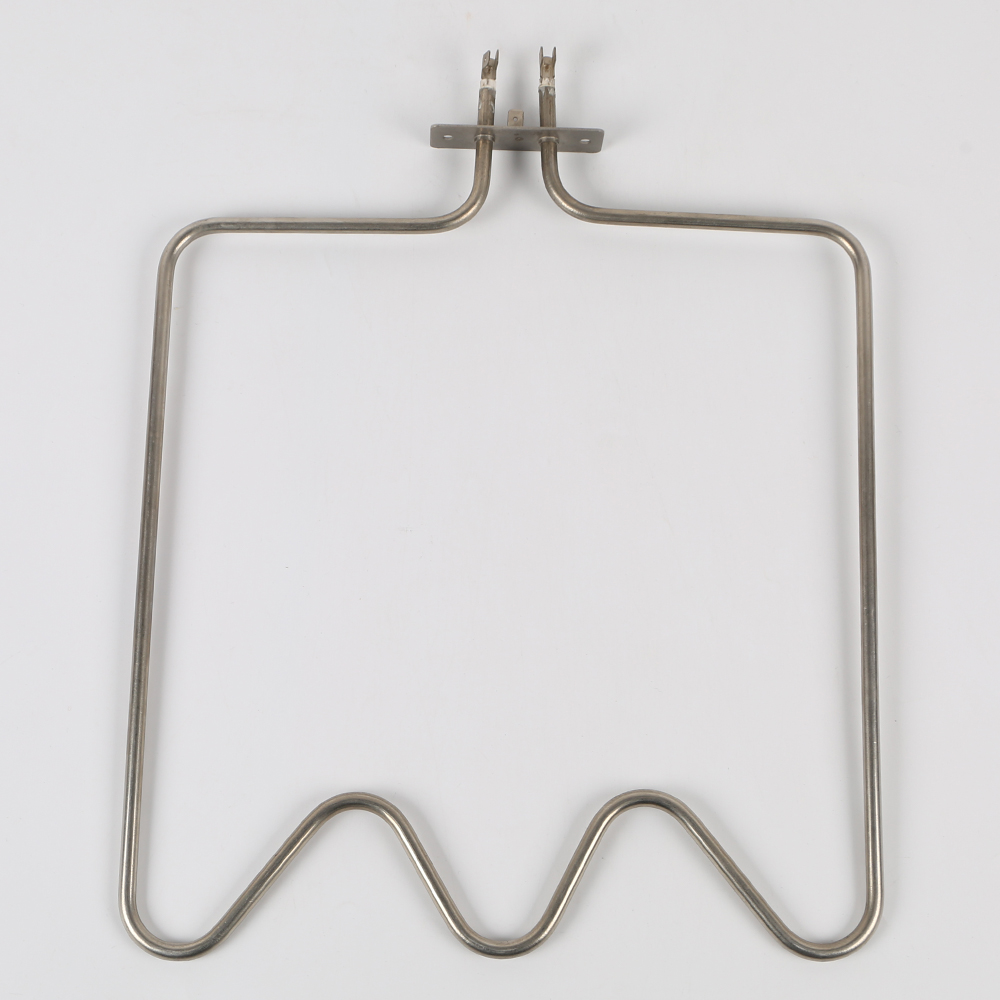

- **U-shaped grill heating element resistance**
Due to the lower temperature at the center of this type of grill heating element resistance, it is prone to causing overheating in the surrounding areas, resulting in burning. Therefore, the temperature distribution of U-shaped heating tubes is relatively uneven, which may affect the quality of baking.

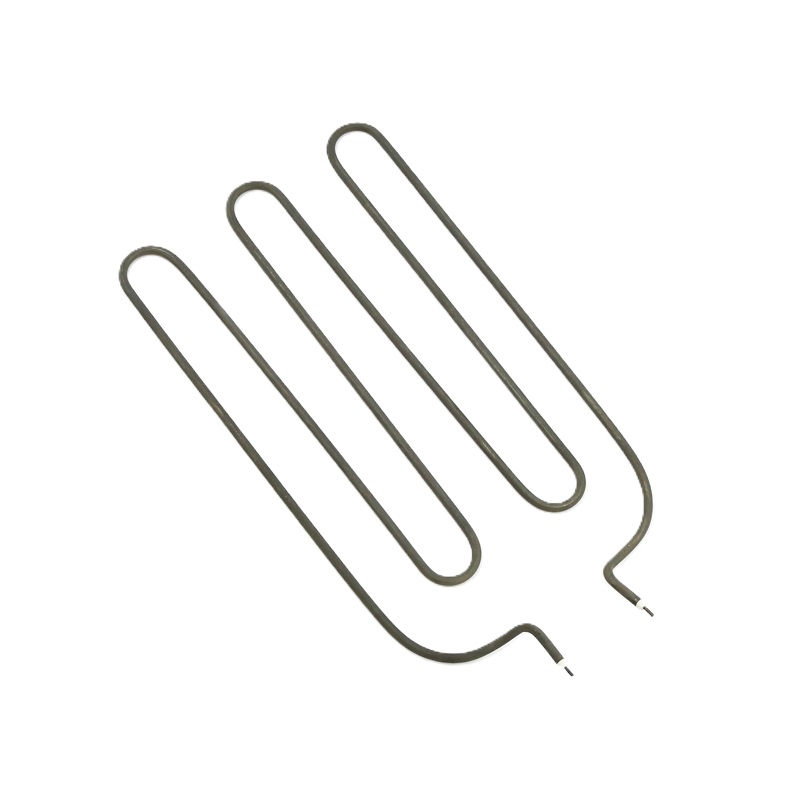

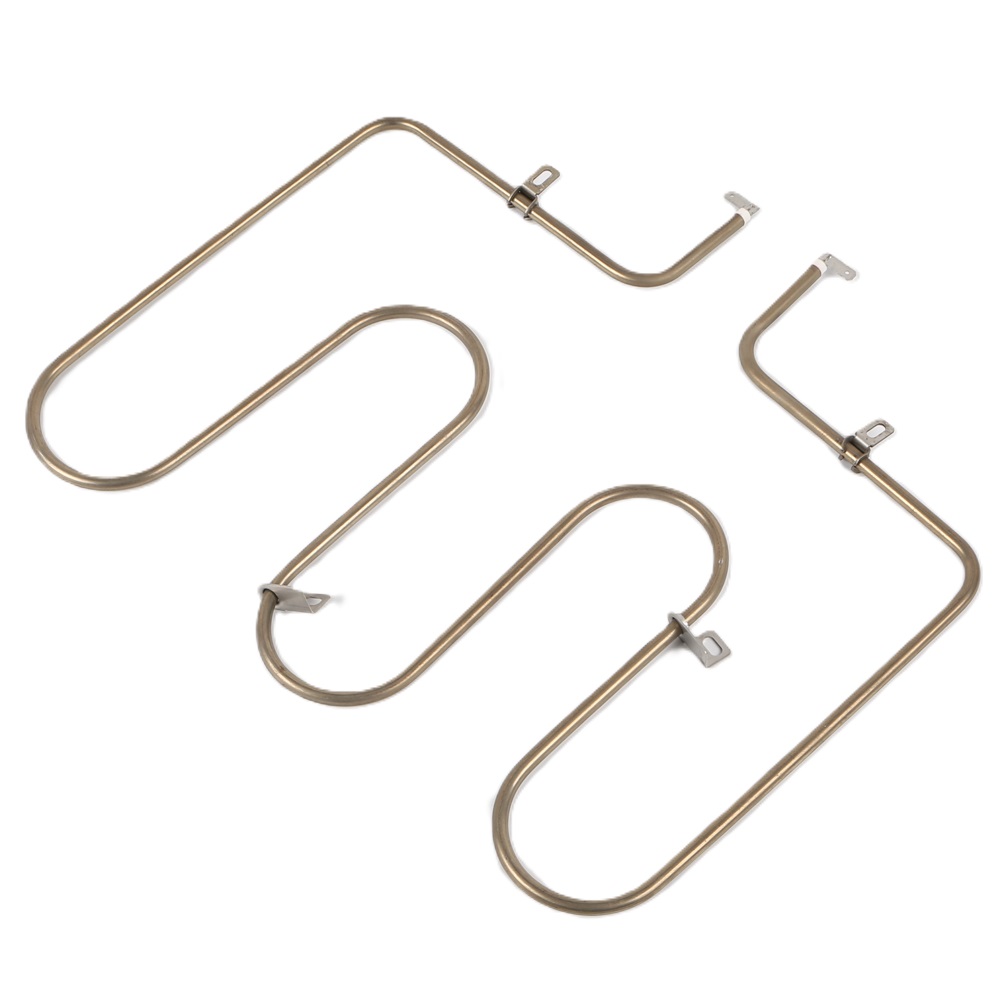

- **M-shaped grill heating element resistance**
The M-shaped grill heating element resistance stands out for its outstanding heat transfer performance.The oven heating element design can better meet the heating needs of all sides and corners, thus achieving a more uniform temperature distribution. This type of oven heating tube is particularly suitable for scenarios with high requirements for baking effects, such as professional kitchens or high-end household ovens.
- **Flat grill heating element resistance**
Compared with U-shaped oven grill heating elements, the design of flat heating elements is simpler and more practical. However, the heating effect of a single flat heating tube is still not ideal. Usually, multiple heating tubes need to be combined to achieve better uniformity. Therefore, in practical applications, increasing the number of heating tubes can effectively improve this issue.
Products Appliance
1. Home baking : Stainless steel is preferred, suitable for 220V voltage, length less than 530mm (small oven).
2. Commercial high frequency use: select the optimized design model of dry burning resistance, power ≥1500W, support the auxiliary program of hot fluorine defrost .
