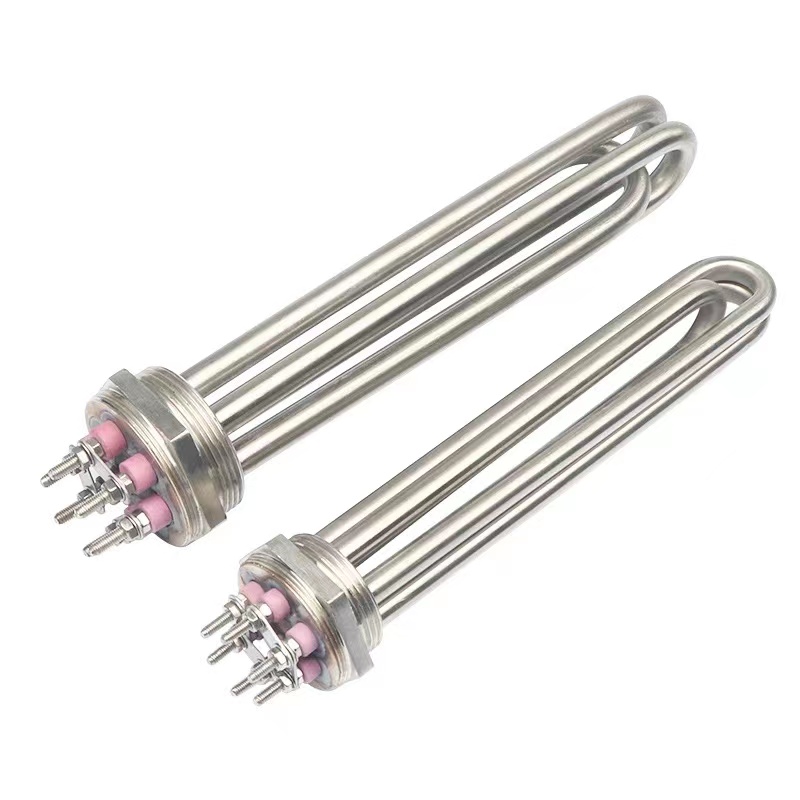

Tubular Water Immersion Heater order required parameters, flange heating tube is also known as flange electric heating tube (also known as plug-in electric heater), it is the use of U-shaped tubular electric heating element, multiple U-shaped electric heating tube welded on the flange centralized heating, according to heating different media design specifications, according to the power configuration requirements assembled on the flange cover, inserted into the material to be heated. A large amount of heat emitted by the heating element is transmitted to the heated medium to increase the temperature of the medium to meet the required process requirements, which is mainly used for heating in open and closed solution tanks and circular/loop systems.
First, flange immersion heater ordering required parameters:
1. Voltage/power: customized according to customer requirements;
2, flange heating tube unilateral length: customized according to the length of the customer’s specific use environment;
3, the number of flange heating pipe: according to the power and length provided by the customer, we help you to design, the electric heat pipe diameter is normal, we design 12mm, 14mm, 16mm.
4, flange (hex nut) size: we are not required to help you design according to the size of the electric tube, there are requirements need to tell us.
The tubular electric heating element is composed of metal tube, spiral resistance wire and crystal magnesia powder with good heat conduction and insulation. A product that can heat the equipment.
