Product Configuration
The defrost aluminum tube heater is an electric heating element specially used in the defrosting system of refrigeration equipment (such as refrigerators, freezers, air conditioners, etc.). The aluminum defrost heater's core function is to heat the aluminum tube by electric energy, melt the frost on the surface of the evaporator, and ensure the refrigeration efficiency. The working principle of the defrost aluminum tube heater is that the electric heating wire heats up after the electricity is energized, and the heat is transferred to the surface of the evaporator through the aluminum tube to melt the frost layer. After defrosting is completed, the temperature controller or time relay will automatically power off.
The refrigerator evaporator defrost aluminum tube heater shell adopts aluminum tube shell, pipe diameter is 4.5mm (commonly used) or 6.5mm, with good thermal conductivity and corrosion resistance, to protect the internal electric heating wire. Heating wire usually adopts silicone rubberheating wire, built-in aluminum tube, can be bent into the appropriate shape and size according to customer requirements drawings.
Product Paramenters
| Porduct Name | Refrigerator Evaporator Defrost Aluminum Tube Heater |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 4.5mm,6.5mm,etc. |
| Shape | customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Aluminum Defrost Heater |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
Jingwei heater is the defrost aluminum tube heater factory,the aluminum heating tube specification can be customized as client’s drawing or samples.At present, we have produced several aluminum defrost heater mainly exported to Egypt and other Middle Eastern countries, if you need to contact us. |
|
Product Application
1. Household/commercial refrigeration equipment:
*** Evaporator defrosting of refrigerators/freezers (common in air-cooled frost-free models).
*** Periodic defrosting of cold storage evaporator.
2. Air conditioning system:
*** Defrosting of the outdoor unit of the heat pump air conditioner in a low temperature environment (to prevent frost from affecting the heating effect).
3. Cold chain logistics equipment:
*** Automated frost system for refrigerated trucks and display cases.
JINGWEI Wokshop
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater

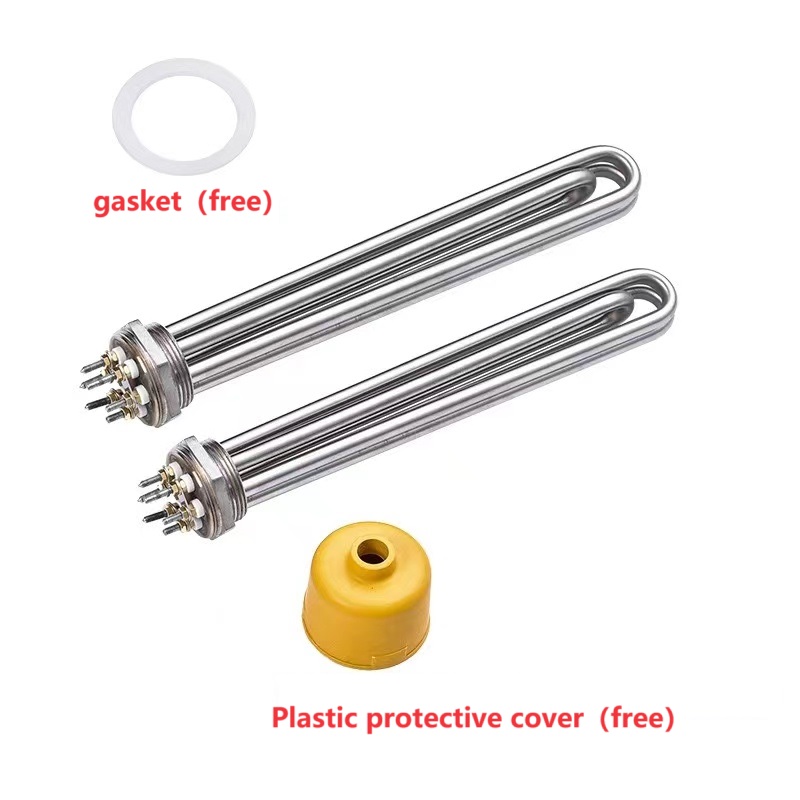

Immersion Heater
Defrost Heater
Defrost Wire Heater
Silicone Heating Pad
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
