Product Configuration

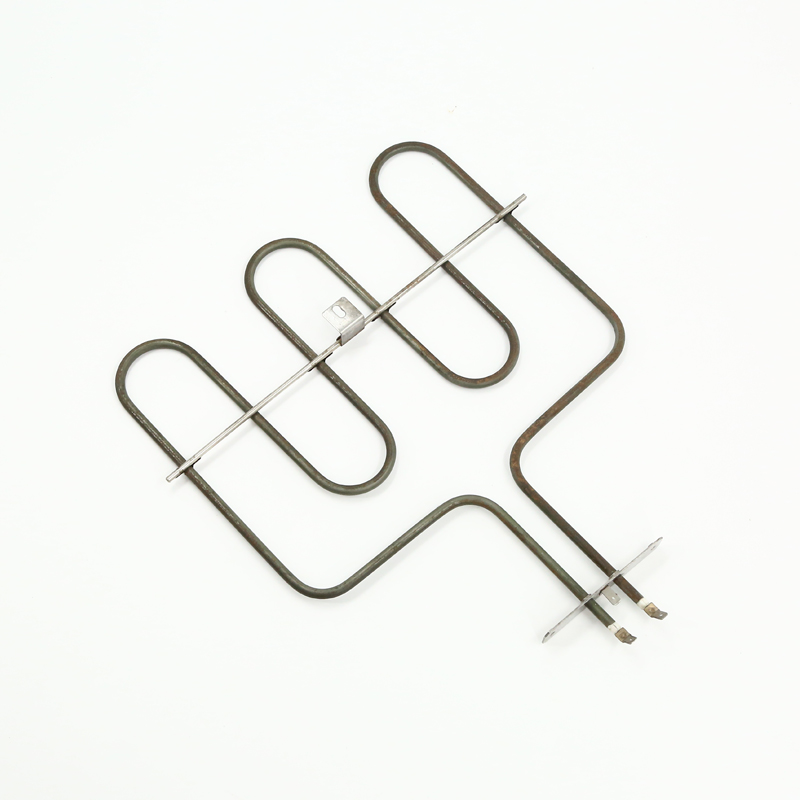

Oven heating element resistance is a seamless metal tube (carbon steel tube, titanium tube, stainless steel tube, copper tube) filled with electric heating wire, the gap is filled with magnesium oxide powder with good thermal conductivity and insulation, and then it is formed by shrinking the tube. Processed into various shapes required by users. The highest temperature can reach 850℃.
The oven heating element resistance belongs to one of the dry-burning heating tubes, and the dry-burning electric heating tube refers to the electric heating tube exposed and dry burned in the air.The outer surface body of the oven heating element resistance is dark green stainless steel after green treatment, so we often see that the heater tube in the oven is dark green, not dirty or gray.The oven heating element resistance shape, voltage and power can be customized according to customer needs.
Product Paramenters
1. Tube diameter: 6.5mm,8.0mm,10.7mm
2. Tube material: SUS304
3. Voltage: 110-360V
4. Power: customized
5. Shape: customized
6. Terminal model: 6.3mm,or other model.
7. Certification: CE,CQC
8. MOQ: 120PCS
The oven heating element resistance specification can be customized as drawing or sample.
Product Features
1. The heat responds quickly.
2. High temperature control accuracy.
3. High comprehensive thermal efficiency.
4. Corrosion resistant and not easy to rust.
5. Safe to use.
Installation Position
1. The hidden oven heating element resistance can make the inner cavity of the steaming oven more beautiful and reduce the risk of corrosion of the tube.
2. The exposed oven heating element resistance means that the tube is directly exposed at the bottom of the inner cavity, although it looks a bit unsightly. But without passing through any medium, It will directly heats the food, and the cooking efficiency is higher.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Oven Heating Element
Fin Heating Element
Silicone Heating Pad
Crankcase Heater

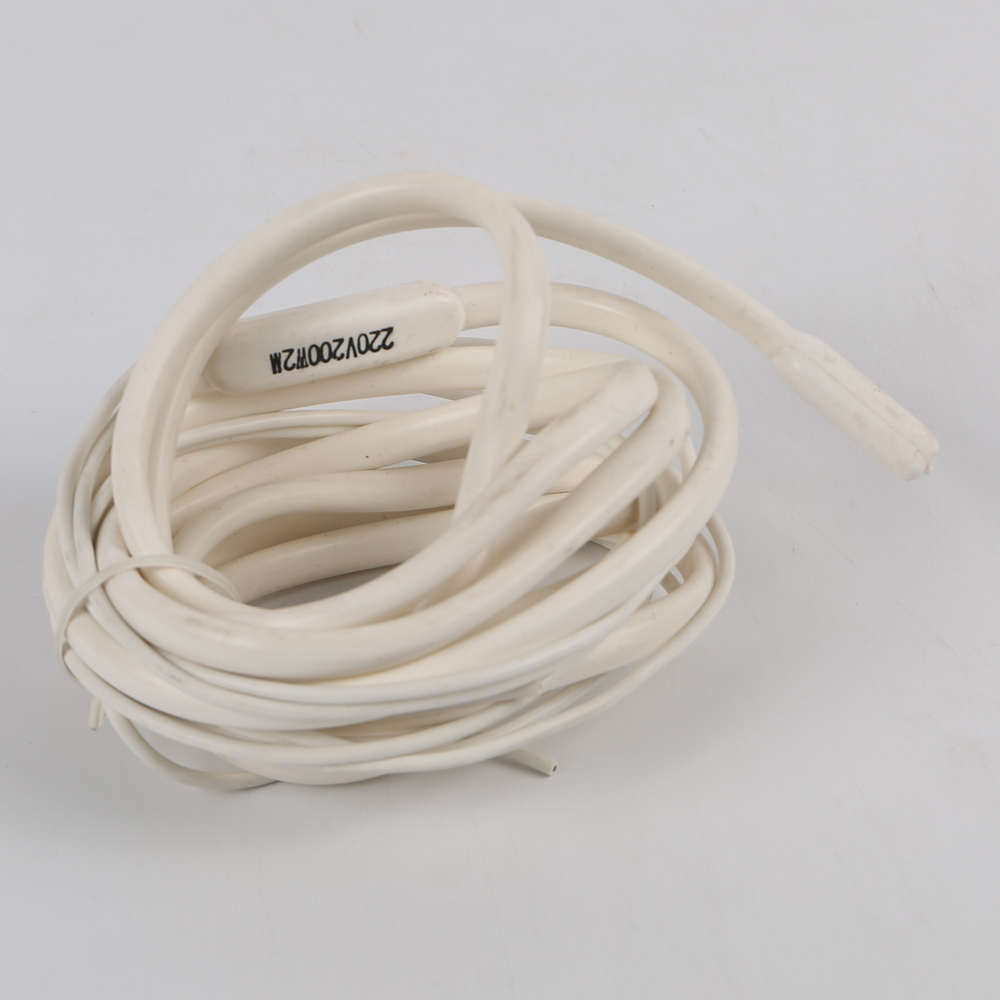

Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
