| Porduct Name | Silicone Rubber Heater Pad |
| Material | Silicone rubber |
| Thickness | 1.5mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Package | carton |
| Approvals | CE |
|

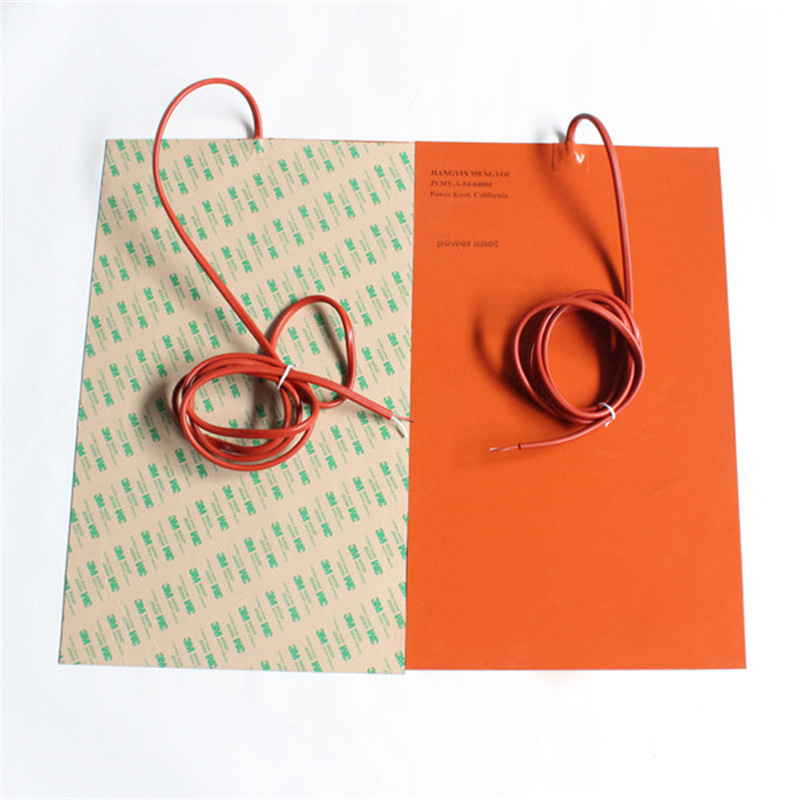

The Silicone Rubber Heater pad size and shape can be customized as client’s requirements.The silicone heating pad can be added 3M adhesive and temperature limited or temperature control. Lead wire material choose: we have silicone wire and firberglass wire for silicone rubber heating pad lead wire,for other material can be informed us before inquiry. Temperature control: manual temperature control (temperature range: 0-70℃ or 30-150 ℃） and digital temperature control( 0-200℃）
|
|
Silicone heating pad with 3M adhesive is a thin sheet product composed of silicone rubber and glass fiber cloth, the standard thickness is usually 1.5mm. The silicone mat heater has good softness, can be completely close contact with the object being heated, flexible heating, shape can be designed according to the needs, the heat energy can be transferred to any place needed. The main heating element of silicone rubber heating pad is arranged nickel alloy resistance wire, the use of silicone heating sheet is more secure. The insulating layer of silicone rubber heater is made of silicone rubber and glass fiber cloth composite, not only has excellent softness, also provides high electric voltage (6KV) , to ensure the safety of use.
In addition, silicone rubber pad heater has the characteristics of rapid heating, uniform temperature, high thermal efficiency, high strength and easy to use, safety life of up to four years, is not easy to aging.
1. Can be customized a variety of sizes and forms (such as round, oval, and vertebral).
2. Drilling, adhesive installation, or packaged installation are the available installation methods.
3. Lead wire length: normal 130 mm; sizes larger than that require customization.
4. Silicone rubber heating pad can be firmly adhered to the surface of an object by using double-sided adhesive or pressure-sensitive adhesive.Simple to set up.
5. Customized manufacture based on the user's requirements for voltage, power, size, and product shape (e.g., oval, cone, etc.).
The silicone rubber heating bed has a wide range of applications,including medical and health care equipment,instruments and mechanical equipment such as tubular and surface antifreeze,insulation heating and so on.Silicone heating mat can be used in humid and without explosive gas,is suitable for mixing heat and keeping warm of industrial equipment pipelines, cans and drums, can also be directly wound on the surface of the heated object,is used as refrigeration protection and auxiliary heating of air conditioning compressor,motor and other equipment.
Aluminum Foil Heater
Finned Heater Element
Defrost Heater Element
Crankcase Heater
Defrost Wire Heater
Drain Line Heater
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
