Stainless Steel Finned Tubular Heating Element

Short Description:

The finned tubular heating element material is stainless steel 304,and the fin strip material is also stainless steel,the tube diameter can be made 6.5mm or 8.0mm,shape and size can be customized as required.The popular shape have straight,U shape,W/M shape,etc.


Product Detail

Product Tags

Product Configuration

Stainless steel finned tubular heating element is an efficient electric heating element, which is widely used in industrial and daily life where efficient heat exchange is required. The core structure is usually composed of metal tubes (such as stainless steel, electric heating wires (resistance wires), modified MgO powder (insulating filler), and external fins. Among them, the metal pipe as the main carrier, not only provides mechanical strength, but also ensures good thermal conductivity; The electric heating wire is the key component of generating heat, and converts electrical energy into heat energy through the flow of current. The modified MgO powder plays the role of insulation and protection to prevent short circuit or damage between the electric heating wire and the stainless steel tube; The design of the external fin is a highlight of the finned tubular heating element, which significantly increases the surface area of the heat pipe, thereby greatly improving the heat exchange efficiency.

According to the actual application needs, the shape of the finned tubular heating element can be a variety of choices, common including linear, U-shaped and W-shaped. These finned heating element shapes are designed not only with space utilization in mind, but also with heat transfer efficiency and ease of installation in mind. In addition, manufacturers can also customize other shapes according to the special requirements of customers to adapt to different application scenarios. For the connection method, most customers tend to choose the flange head, which is easy to install and remove, while ensuring the stability of the connection. However, if stainless steel finned heating elements are used in unit coolers or other dehumidification equipment, silicone rubber head seals may be a better choice. This sealing method has excellent waterproof performance and can effectively prevent water intrusion in wet environments, thereby extending the service life of the heat pipe and improving the stability of the system.

Product Paramenters

Porduct Name Stainless Steel Finned Tubular Heating Element
Humidity State Insulation Resistance ≥200MΩ
After Humid Heat Test Insulation Resistance ≥30MΩ
Humidity State Leakage Current ≤0.1mA
Surface Load ≤3.5W/cm2
Tube diameter 6.5mm,8.0mm,etc
Shape Straight,U shape,W shape,or customized
Resistant voltage 2,000V/min
Insulated resistance  750MOhm
Use Finned Heating Element
Terminal Rubber head,flange
Length Customized
Approvals CE, CQC
The shape of stainless steel finned heating element we usually made by straight,U shape,W shape,we can also customized some special shapes as required.Most customer's is choosed the tube head by flange,if you used the finned heating elements on unit cooler or other defrsoting equipments,maybe you can choosed the head seal by silicone rubber,this seal way has the best waterproof.

Shape Choose

Straight

U shape

W shape

Product Features

Efficient heating

Fin design greatly increases the heat dissipation area and high heat exchange efficiency.

High temperature resistance

The stainless steel finned heating element can withstand high temperature working environment, suitable for a variety of industrial occasions.

Easy to install

Compact structure, customized shape and size according to demand.

Corrosion resistance

The finned aire heater element use the stainless steel or other corrosion-resistant materials, suitable for humid or corrosive environments.

Long service life

High quality materials and reasonable design ensure durable heating tubes.

Product Applications

Stainless steel finned heating elements have been widely used in air heating, liquid heating, oven, air conditioning system and other fields. For example, in the field of air heating, finned air heating pipes can quickly heat cold air to the required temperature, which is suitable for industrial drying, food processing and other scenarios; In terms of liquid heating, it can be used in the heating process of water or other fluids to meet the needs of chemical, pharmaceutical and other industries; In ovens and air conditioning systems, finned heating element can provide a stable heat source to ensure high efficiency and reliability of equipment operation.

Production Process

1 (2)

Service

fazhan

Develop

received the products specs,drawing,and picture

xiaoshoubaojiashenhe

Quotes

the manager feedback the inquiry in 1-2hours and send quotation

yanfaguanli-yangpinjianyan

Samples

Free samples will be sent for check products quality before bluk production

shejishengchan

Production

confirm products specification again,then arrange the production

dingdan

Order

Place order once you confirmed samples

ceshi

Testing

Our QC team will be checked the products quality before delivery

baozhuangyinshua

Packing

packing products as required

zhuangzaiguanli

Loading

Loading ready productsto client’s container

receiving

Receiving

Received you order

Why Choose Us

•   25 years exporting & 20 years manufacturing experience
   Factory covers an area of about 8000m²
   In 2021,all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
•   the average daily output is about 15000pcs
   Different Cooperative customer
•   Customization depend on your requirement

Certificate

1
2
3
4

Related Products

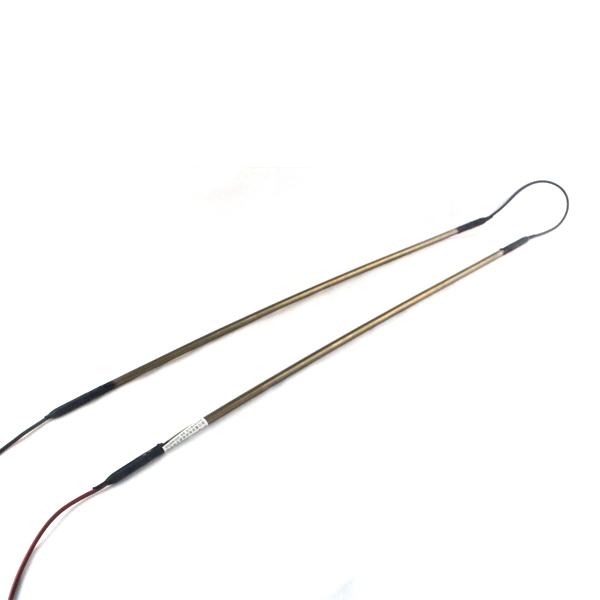

Defrost Heater Element
