| Porduct Name | Stainless Steel Finned Tubular Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Fin size | 3mm and 5mm |
| Resistant voltage | 2,000V/min |
| Material | SS304,SS321,etc. |
| Use | Air Finned Heating Element |
| Tube seal method | rubber head or flange |
| Road size | M3,M4,etc. |
| Approvals | CE/CQC |
|
The Stainless Steel Finned Tubular Heating Element shape can be made straight,U shape,M shape and custom special shape.The finned heating element power can be made about 200-700W,different legth power is different.The finned heating element can be higher than other stainless steel heating tube. The tube diameter of finned tubular heating element we have 6.5mm,8.0mm,10.7mm,fin size we have 3mm and 5mm. Need send us below finned heater specs before inquiry.
|
|
Stainless steel finned tubular heating element can be customized into a variety of shapes to meet customer requirements for direct immersion in liquids such as water, oil, solvents and process solutions, molten materials, and air and gases.
The finned heating element is produced with SS304,SS321 and other stainless steel pipe materials, and also has a variety of terminal styles to choose from, such as rubber moulded seal (with better water resistance), flange welding and so on. High temperature modified magnesia powder insulation provides greater heat transfer.
*If you have any special requirements, we could also customize for you.
Defrost Heater
Air Heating Tube
Oven Heating Element
1. Brazed, crimped or welded to the element’s cold section.
2. Used as a tight joint to the heater, which is fixed in open tanks or vessels.
3. Supplied in brass, steel, or stainless steel. COMPRESSION FITTINGS
4. Available in nickel-plated brass for field installation on elements of 0.375”, 0.430”, 0.475” elements diameter.

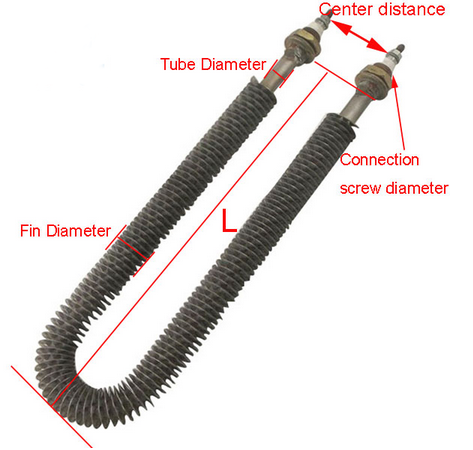

Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
