Product Paramenters
| Porduct Name | Stainless Steel OEM Finned Tubular Heater |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,etc |
| Shape | Straight,U shape,W shape,or customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Finned Heating Element |
| Terminal | Rubber head,flange |
| Length | Customized |
| Approvals | CE, CQC |
| TThe OEM finned tubular heater size and shape can be made as client’s requirements,the shape of finned heating element have single straight tube,double straight tube,U shape,W shape,or other custom shape.Volate is 110-380V. | |
Straight

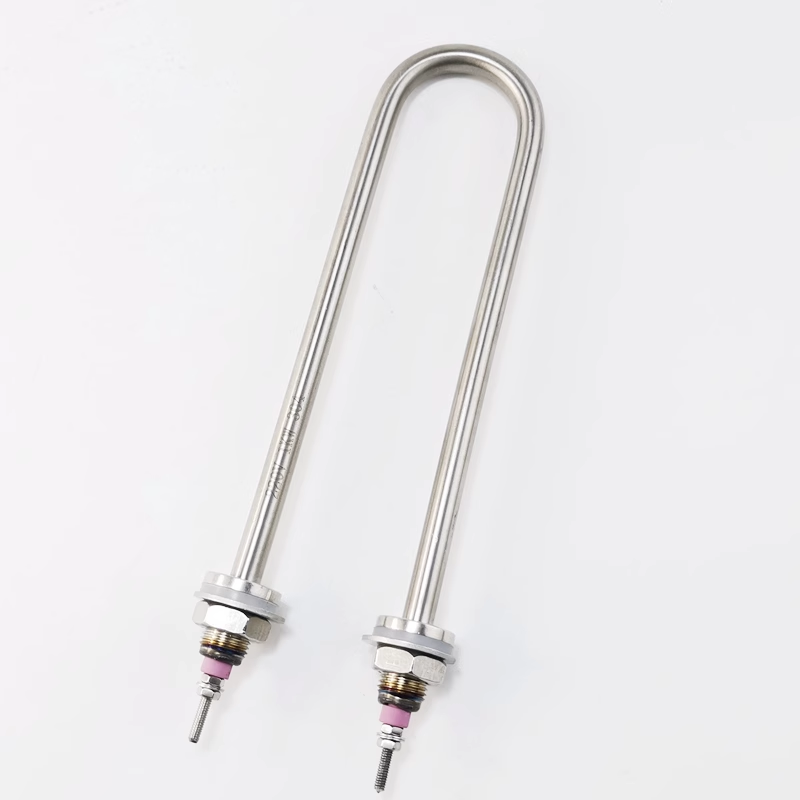

U shape
W shape
Product Configuration
OEM Finned tubular heater is made of high-quality stainless steel tubes, modified magnesium oxide powder, high-resistance electric heating alloy wires, and stainless steel fins, which are manufactured using advanced production equipment and techniques. They have undergone strict quality control. The finned tube heater can be installed in blower ducts or other static or moving air heating applications.
The tubular finned heating element is a heating element with metal fins wrapped around the surface of a regular element. The heat dissipation area is 2-3 times larger than that of a regular element, so the fin heater element allows a surface power load of 3-4 times that of a regular element. The heater's length is shorter, reducing its own heat loss. Under the same power condition, it has the advantages of fast heating, even heating, good heat dissipation, high thermal efficiency, long service life, small heating device size, and low cost. It has been designed reasonably according to user requirements for easy installation. The finned strip air heater is widely used in mechanical manufacturing, automotive, textile, food, household appliances, and other industries, especially in the air curtain industry of air conditioners.
Finned tube material selection
1. Iron pipe (general material)
Low price, easy to rust, used in places with large losses and no special requirements.
2.201 Stainless steel (conventional material)
Low price, better quality than iron pipe, suitable for most working environments, temperature less than 300°C.
3. 304 stainless steel (conventional material)
Moderate price quality better than 201 can be used in slightly corrosive environment can withstand 450°C.
4.316 stainless steel
High quality material, better quality than 304 can be used in corrosive environment, cost-effective, widely used.
5. 2520 stainless steel
The material is better than 316 stainless steel, can withstand 1300°C, special temperature, high cost.
6. Outsourcing Teflon quality material
Designed for highly corrosive environments at 99% strong acid and base non-reactive operating temperature of 250°C cost-effective.
long-term
7. Titanium tubes
High quality material, dedicated to highly corrosive environment, in the vast majority of strong acid and alkali non-reaction high temperature resistance expensive cost long life.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater

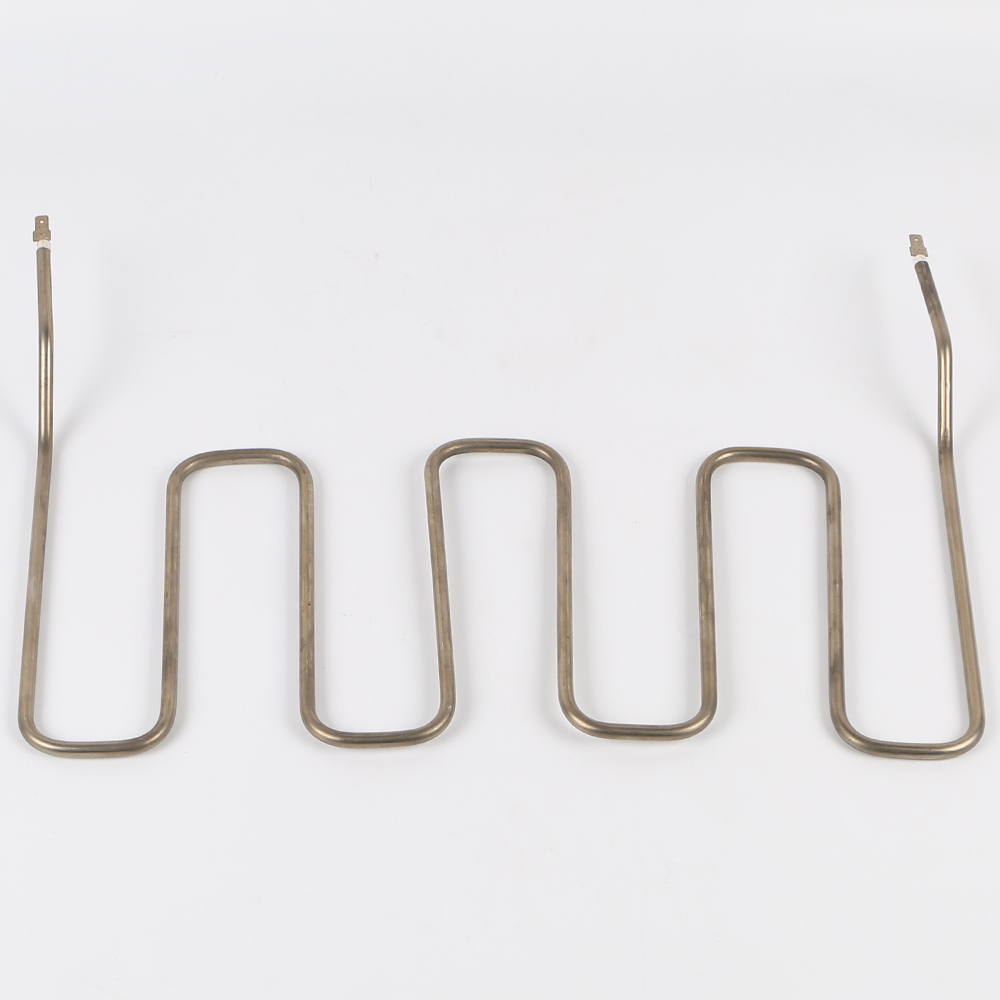

Oven Heating Element
