Product Paramenters
| Porduct Name | Water Tank Immersion Flange Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Immersion Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
The Immersion Flange Heating Element material we have stainless steel 201 and stainless steel 304,the flange size have DN40 and DN50,power and tube length can be custoized as requirements. The water tank immersuon tubular heater standard screw plug sizes utilized are 1”, 1 1/4, 2” and 2 1/2” and are made of steel, brass or stainless steel, depending on the application.Various types of electrical protective enclosures,built-in thermostats, thermocouples and high-limit switches can be incorporated into screw plug immersion heaters. |
|
Product Configuration
Flange immersion heater is made of stainless steel 304 or 201 tube, high-quality Modified Mgo powder, High Ohm NiGr alloy wire.Flange immersion tubular heater is more heat exchange efficient, that means flange immersion heater could standard 3 to 4 times wattage.Flange water immersion heater is made of advanced production equipment and through strict quality test.Characteristic fast temperature rise heating uniformity heating exchange efficiently long-time usage appliance.
These flanged heater for water tank products are designed for heating heat transfer fluids, medium and lightweight oils and water in tanks and pressure vessels. Plate flanged heaters are ideal for applications requiring low to medium wattage requirements.
Water flanged heaters are made with tubular elements that are brazed or welded to the flange. Stock plate flanged heaters are supplied with general purpose or moisture-resistant terminal enclosures.
Product Features
1. All kinds of heaters, such as electric water furnace, water boiler, steam furnace, air energy, solar energy, auxiliary heating of engineering water tank, chemical pool, bathing pool, swimming pool, incubator, etc.
2. Heavy oil heater of heavy oil burner.
3. Heaters for any liquid in various industrial chemicals
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

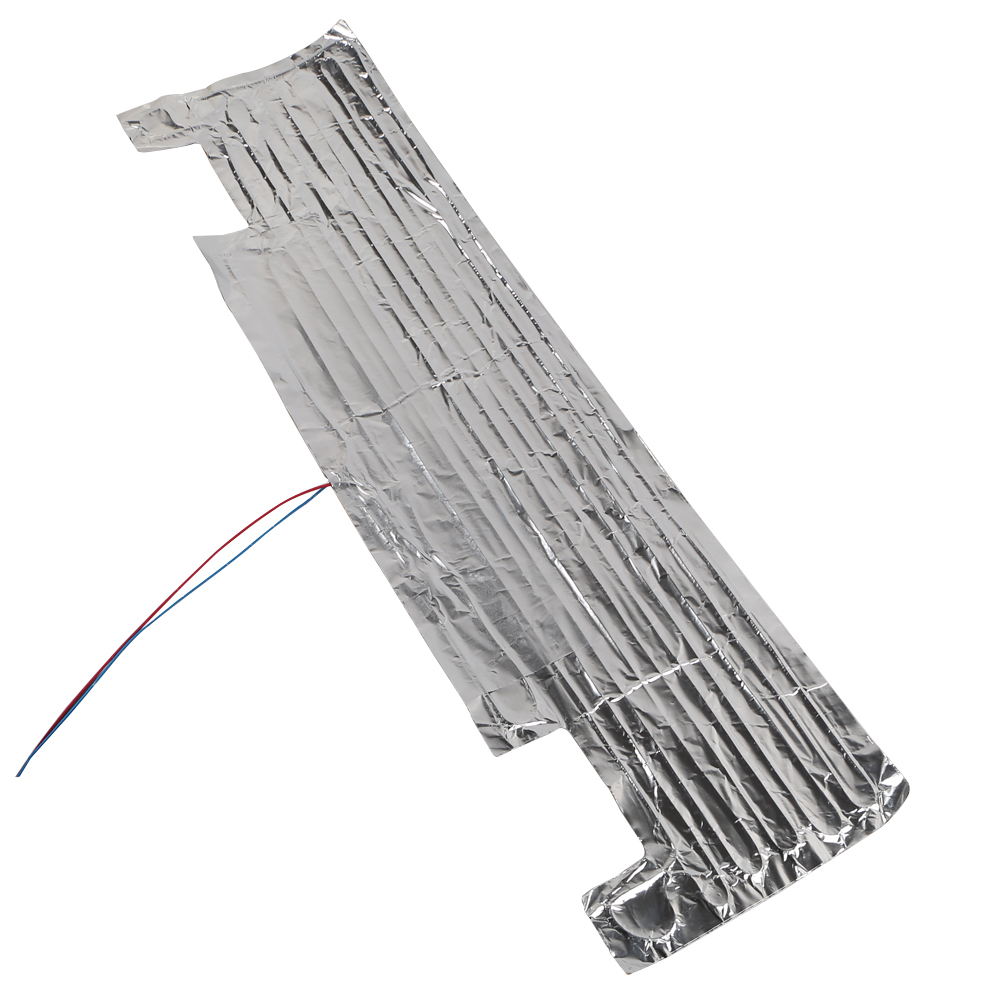

Aluminum Foil Heater
Defrost Heater Element
Fin Heating Element
Silicone Heating Pad
Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
